Q: How much does a pile foundation design cost for a Coquitlam project?

610. The range depends on the number of boreholes, the complexity of the soil profile, and whether lateral/seismic analysis is required.

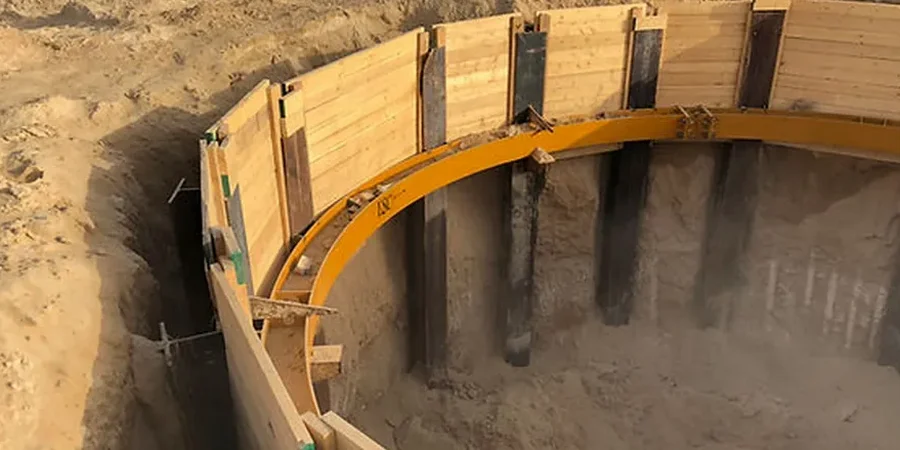

The ground beneath Coquitlam tells two very different stories. Southwest of the city center, near the Fraser River, you hit soft alluvial clays and silts deposited over centuries of flooding. Move north toward Eagle Mountain or Burke Mountain, and the picture shifts to dense glacial till, with cobbles and boulders that laugh at shallow footings. We see this contrast in almost every project. A townhouse complex on Austin Avenue needs piles socketed into till to bypass the compressible layer. Across town in Westwood Plateau, the same pile design might terminate higher, relying on end-bearing in a stiff diamict. Coquitlam's variable geology demands more than a one-size-fits-all approach. When we start a new assignment, we often pair the design with data from spt drilling to capture refusal depths and correlate blow counts with bearing capacity. For sites where the transition from soft to hard strata is sharp, the continuous profile from cpt testing gives us the precision to set pile lengths without guesswork.

Coquitlam's till can stop a standard auger at 8 meters. Our pile designs account for that refusal, not fight it.

Methodology and scope

One thing we notice repeatedly in Coquitlam: many contractors assume the till layer is uniform. It is not. Across the Port Coquitlam border, you encounter lenses of outwash sand that can collapse during augering. Within Coquitlam itself, the Vashon till varies from extremely dense to moderately compact depending on the proximity to old stream channels. Our pile design process starts with site-specific characterization. We model axial capacity using alpha and beta methods for cohesive layers, then switch to bearing capacity factors for the till. For lateral response, we use p-y curves calibrated to the strain-softening behavior of local clays. Seismic performance follows the site class determined through masw surveying. A Site Class C versus D classification changes the design spectrum significantly under NBCC 2020. We also check for downdrag potential where fill has been placed over compressible native soil. In those cases, the pile must extend deep enough that the neutral plane sits well below the zone of settlement.

Local considerations

The most expensive mistake we see in Coquitlam is terminating piles too early, right above a buried boulder field. The driller hits refusal at 5 meters, logs it as till, and everyone assumes the pile will hold. Six months later, the foundation settles unevenly because that 'till' was a 300 mm cobble floating in softer matrix. We have been called to fix this exact scenario twice in the Burke Mountain area. Pile design without a thorough understanding of the glacial depositional environment is gambling. Another common failure: underestimating cyclic degradation of skin friction in the clay layers near the Coquitlam River. Under seismic loading, those clays lose strength rapidly. Our designs incorporate cyclic reduction factors from published laboratory data and site-specific triaxial testing when the project risk profile justifies it.

Technical data

Parameter	Typical value
Design standard	NBCC 2020, CSA A23.3-19
Typical pile type in Coquitlam	Driven H-pile, cast-in-place concrete pile
Target bearing stratum	Vashon glacial till (N60 > 50)
Seismic site class range	C to E (per NBCC Table 4.1.8.4.A)
Lateral analysis method	p-y curves (LPILE / FB-MultiPier)
Maximum considered downdrag	Up to 25 kPa in Fraser River floodplain
Required field testing	PDA (ASTM D4945), static load test
Concrete exposure class	C-1, C-XL per CSA A23.1

Associated technical services

Axial Capacity and Settlement Analysis

We compute ultimate and allowable capacities using static formulas calibrated to Coquitlam's till properties. Settlement estimates consider both elastic shortening of the pile and point settlement under service loads.

Lateral and Seismic Pile Design

Full p-y analysis for lateral spread and inertial loading per NBCC 2020. We model the cracked section properties of concrete piles and check ductility demands at the pile-to-cap connection.

Pile Driving Monitoring and Testing

CAPWAP analysis of PDA data to verify capacity and assess driving stresses. We also design and supervise static load tests for projects with high consequence of failure.

Quick answers

How much does a pile foundation design cost for a Coquitlam project?

What pile types work best in Coquitlam's glacial till?

Driven steel H-piles and cast-in-place concrete piles are the most common. H-piles penetrate the dense till well and can be driven to high capacities. Cast-in-place piles give you more control when boulders are expected, because you can clean the hole and verify the bearing surface before pouring concrete.

Do I need a seismic pile design for my Coquitlam building?

Yes, unless the building falls under Part 9 of the NBCC and is exempt. Coquitlam is in a high seismicity zone. The design must account for site class effects, especially on softer soils near the Fraser River. Our designs follow the NBCC 2020 requirements for ductile pile behavior under the design earthquake.

How do you verify pile capacity after installation?

We use Pile Driving Analyzer (PDA) testing during driving for driven piles, and static load tests for critical structures. For cast-in-place piles, we often specify Osterberg cell testing on a sacrificial test pile. All methods are correlated back to the design assumptions to confirm the installed pile meets the required factor of safety.
